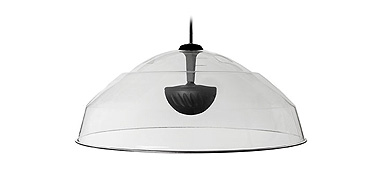

FP6030 TWO 1" STEREO HIGH-DIRECTIVITY
  • Patented Dual-Parabolic dispersion control technology provides a dramatic hot spot with crisp stereo separation.
  • Engineered for stereo or mono applications.
  • Twin 25 mm (1 in) convex aluminum High Excursion Micro Transducers in individually sealed enclosures for stereo or mono music & messaging.
  • Patented ZeroReflection™ enclosure technology for accurate sound reproduction.
  • Narrow 41º coverage angle for sharp focus.
  • Single-point balanced mounting for easier and cleaner-looking installs.
  • Mounting hardware included, optional wall bracket available.

Connections 8 or 4 Ohm - Hardwire lead. Optional transformered - 4 Position tap switch.
Frequency Response(-3 dB) 143 Hz – 21.5 kHz
Low Frequency(-10 dB) 104 Hz – 22 kHz
Max SPL dB @ 1 M 92.5 dB (stereo); 95.5 db (mono)
Full-Range Drivers 2 x 25 mm (1 in) aluminum, high excursion
Mid N/A
Nominal Impedance 8 Ohm stereo, 4 Ohm mono
Power Capacity RMS 15 W
Sensitivity 80.5 (stereo); 83.5 (mono)
Transformer Options Optional transformer: 25/70.7/100 V with 8 Ohm direct
Tweeter N/A


Weight 4.1 kG / 9 lbs
Colors Clear dome, black enclosure pod. Custom dome colors available.
